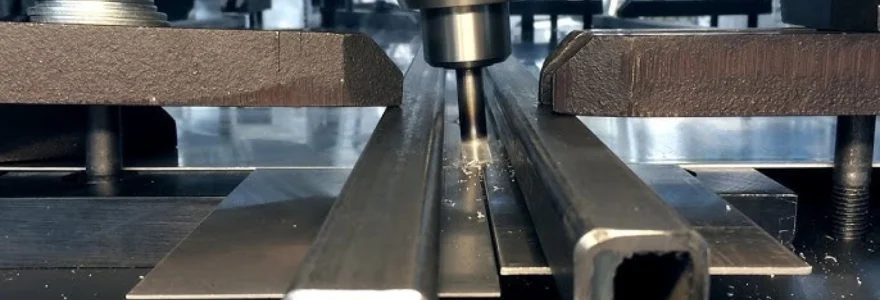

Friction stir welding (FSW) has revolutionized the field of materials joining, offering significant advantages over traditional welding methods. This solid-state joining technique has gained traction in industries requiring high-strength, defect-free welds, particularly in aerospace and automotive applications. As the demand for lightweight, durable structures grows, so does the need for innovative FSW technologies. Recent advancements in FSW research and development have paved the way for improved process efficiency, expanded material capabilities, and enhanced weld quality.
Evolution of friction stir welding (FSW) process parameters
The optimization of FSW process parameters has been a focal point of research, aiming to enhance weld quality and expand the range of materials that can be joined. Key parameters such as tool rotation speed, traverse speed, and plunge depth significantly influence the heat generation, material flow, and resulting microstructure of the weld. Recent studies have explored the use of pulsed FSW , where the tool rotation speed is periodically varied to improve material mixing and reduce defects.
Researchers have also investigated the effects of external cooling methods on FSW processes. By controlling the cooling rate, it's possible to tailor the microstructure and mechanical properties of the weld. This has led to the development of cryogenic FSW , where liquid nitrogen is used to rapidly cool the weld zone, resulting in finer grain structures and improved strength.
Another significant advancement is the implementation of force-controlled FSW , where the plunge force is dynamically adjusted based on real-time feedback. This approach allows for more consistent weld quality, especially when dealing with varying material thicknesses or complex geometries. Research and development FSW efforts have shown that force-controlled systems can significantly reduce the occurrence of weld defects and improve overall process stability.
Advanced FSW tool designs and materials
The FSW tool plays a crucial role in the welding process, and its design has a profound impact on weld quality and process efficiency. Recent advancements in tool design have focused on improving material flow, reducing wear, and extending tool life. These innovations have expanded the range of materials that can be effectively joined using FSW.
Tungsten-rhenium alloys for High-Temperature applications
For high-temperature FSW applications, such as welding steel or titanium alloys, traditional tool materials often fall short due to rapid wear and deformation. To address this challenge, researchers have developed tools made from tungsten-rhenium (W-Re) alloys. These alloys exhibit exceptional strength and wear resistance at elevated temperatures, allowing for consistent weld quality even in demanding applications.
The use of W-Re tools has enabled FSW of materials with melting points exceeding 1500°C, opening up new possibilities for joining high-temperature alloys in aerospace and energy sectors. Studies have shown that W-Re tools can maintain their geometry and performance for extended periods, reducing the need for frequent tool replacements and improving overall process economics.
Polycrystalline cubic boron nitride (PCBN) tools for joining steel
Polycrystalline cubic boron nitride (PCBN) has emerged as a superior tool material for FSW of steel and other high-strength alloys. PCBN tools offer exceptional hardness, thermal stability, and wear resistance, making them ideal for challenging welding applications. Research has demonstrated that PCBN tools can produce high-quality welds in various steel grades, including advanced high-strength steels (AHSS) used in automotive manufacturing.
The adoption of PCBN tools has significantly expanded the industrial applications of FSW, particularly in sectors where joining steel components is critical. However, the high cost of PCBN remains a challenge, driving ongoing research into more cost-effective tool materials and designs that can offer similar performance.
Geometrical innovations: threaded and scrolled shoulder designs
Tool geometry plays a crucial role in material flow and heat generation during FSW. Recent innovations have focused on optimizing the shoulder and pin designs to enhance weld quality and process efficiency. Threaded pin designs have shown promise in improving material flow and reducing the formation of voids in the weld zone.
Scrolled shoulder designs have gained attention for their ability to contain plasticized material within the weld zone, reducing flash formation and improving surface finish. These designs often incorporate spiraling grooves on the shoulder surface, which help direct material flow and enhance mixing. Research has shown that scrolled shoulder tools can produce welds with superior mechanical properties and fewer defects compared to conventional flat shoulder designs.
Hybrid tools: combining conventional and FSW techniques
An exciting area of research is the development of hybrid welding tools that combine FSW with other joining techniques. For example, FSW-MIG hybrid welding tools integrate a metal inert gas (MIG) welding torch with an FSW tool, allowing for simultaneous fusion and friction stir welding. This approach can enhance joint strength and expand the range of materials that can be joined effectively.
Another innovative concept is the electrically-assisted FSW tool, which incorporates electrical resistance heating to reduce the required plunge force and improve material flow. This technique has shown promise in joining difficult-to-weld materials and reducing tool wear in high-temperature applications.
Robotic and automated FSW systems
The integration of robotics and automation in FSW processes has significantly enhanced the technique's flexibility and applicability in industrial settings. Advanced robotic systems equipped with force control capabilities and real-time monitoring have made it possible to perform FSW on complex geometries and large structures with high precision.
Integration of Force-Controlled robots in FSW production lines
Force-controlled robotic systems have revolutionized FSW implementation in production environments. These systems can maintain a constant axial force during welding, adapting to variations in material thickness and surface irregularities. This capability ensures consistent weld quality across large structures and complex geometries.
Recent advancements in robotic FSW systems include the development of multi-axis force sensors and adaptive control algorithms. These technologies allow for real-time adjustment of welding parameters based on force feedback, ensuring optimal material flow and heat input throughout the weld. The integration of force-controlled robots has been particularly beneficial in the aerospace industry, where large aluminum structures with varying thicknesses are common.
Machine learning algorithms for Real-Time weld quality monitoring
The application of machine learning (ML) and artificial intelligence (AI) in FSW processes has opened new avenues for real-time quality monitoring and defect prediction. Advanced ML algorithms can analyze data from multiple sensors, including force, temperature, and acoustic emissions, to detect anomalies and predict weld quality in real-time.
Recent research has focused on developing neural network models capable of correlating process parameters with weld quality metrics. These models can be trained on large datasets of welding experiments to predict the occurrence of defects such as voids or lack of penetration. The integration of ML-based quality monitoring systems in FSW production lines has the potential to significantly reduce inspection costs and improve overall product quality.
Development of Multi-Axis FSW systems for complex geometries
Traditional FSW systems are often limited to linear or simple curved welds. However, recent advancements in multi-axis FSW systems have expanded the technique's capabilities to include complex three-dimensional geometries. These systems typically incorporate 6-axis or 7-axis robotic arms, allowing for welding in multiple orientations and along complex paths.
One notable development is the gantry-based FSW system with multiple degrees of freedom. These systems can perform FSW on large, complex structures such as aircraft fuselages or ship hulls. The integration of advanced path planning algorithms and simulation tools has further enhanced the precision and efficiency of multi-axis FSW operations.
FSW applications in aerospace and automotive industries
Friction stir welding has found significant applications in both aerospace and automotive industries, where the demand for lightweight, high-strength structures is ever-increasing. In the aerospace sector, FSW has been successfully employed in the fabrication of fuel tanks, rocket bodies, and aircraft fuselages. The technique's ability to produce high-quality, defect-free welds in aluminum alloys has made it particularly valuable for reducing the weight of aircraft structures.
In the automotive industry, FSW has gained traction for joining aluminum body panels, chassis components, and battery enclosures for electric vehicles. The process offers several advantages over traditional welding methods, including reduced distortion, improved fatigue strength, and the ability to join dissimilar materials. For example, FSW has been used to create aluminum-steel hybrid structures, combining the lightweight properties of aluminum with the strength and cost-effectiveness of steel.
Recent research has focused on expanding the use of FSW in joining advanced materials such as magnesium alloys and metal matrix composites. These materials offer exceptional strength-to-weight ratios but are often challenging to weld using conventional techniques. FSW has shown promise in producing high-quality joints in these materials, opening up new possibilities for lightweight design in both aerospace and automotive applications.
Emerging FSW variants: friction stir spot welding and friction stir processing
As FSW technology matures, several variants have emerged to address specific industrial needs and expand the technique's applicability. Two notable variants are Friction Stir Spot Welding (FSSW) and Friction Stir Processing (FSP).
Friction Stir Spot Welding is a derivative of FSW designed for creating spot joints, similar to resistance spot welding. In FSSW, the rotating tool is plunged into the overlapping sheets and then retracted, creating a localized weld nugget. This technique has gained popularity in the automotive industry for joining aluminum body panels and in the manufacturing of electronic devices. Recent advancements in FSSW include the development of refill FSSW , which eliminates the exit hole left by the tool, resulting in improved aesthetic and mechanical properties.
Friction Stir Processing, on the other hand, uses the principles of FSW to modify the microstructure of materials, enhancing their properties without joining. FSP has shown promise in improving the surface properties of materials, creating fine-grained structures, and producing metal matrix composites. Recent research has explored the use of FSP for enhancing the corrosion resistance of magnesium alloys and improving the wear resistance of aluminum alloys.
Computational modeling and simulation advancements in FSW
The complexity of the FSW process, involving coupled thermal, mechanical, and metallurgical phenomena, has driven significant advancements in computational modeling and simulation techniques. These tools play a crucial role in understanding the process mechanics, optimizing parameters, and predicting weld quality.
Finite element analysis for Thermal-Mechanical coupling in FSW
Finite Element Analysis (FEA) has become an indispensable tool for modeling the thermal-mechanical behavior of FSW processes. Advanced FEA models can simulate the heat generation, material flow, and stress distribution during welding. Recent developments in FEA techniques have focused on incorporating rate-dependent material models and adaptive meshing algorithms to accurately capture the large deformations and temperature gradients characteristic of FSW.
Researchers have also developed coupled thermo-mechanical-microstructural models that can predict not only the temperature and stress fields but also the resulting grain structure and mechanical properties of the weld. These advanced models have proven valuable in optimizing process parameters and tool designs for specific material combinations and joint configurations.
Computational fluid dynamics for material flow prediction
Computational Fluid Dynamics (CFD) techniques have been increasingly applied to model the complex material flow during FSW. CFD simulations can provide insights into the formation of defects such as voids or tunnels, which are often related to inadequate material flow. Recent advancements in CFD modeling for FSW include the incorporation of non-Newtonian fluid models and the use of particle tracing techniques to visualize material movement.
One notable development is the application of Smoothed Particle Hydrodynamics (SPH) to FSW simulations. SPH, a meshless method, is particularly well-suited for modeling the large deformations and material mixing that occur during FSW. These advanced CFD techniques have enabled more accurate predictions of weld quality and have contributed to the optimization of tool geometries for improved material flow.
Microstructure evolution models for FSW joint properties
Understanding and predicting the microstructural evolution during FSW is crucial for estimating the final properties of the welded joint. Recent research has focused on developing physics-based models that can simulate grain growth, recrystallization, and precipitation processes during FSW. These models often integrate thermodynamic and kinetic data with finite element simulations to predict the final grain structure and phase distribution in the weld zone.
Advanced microstructure evolution models have been developed to predict the formation of intermetallic compounds in dissimilar metal welds, a critical factor affecting joint strength and ductility. These models have proven valuable in optimizing process parameters for joining challenging material combinations, such as aluminum to steel or titanium to nickel alloys.
Digital twin technology for FSW process optimization
The concept of digital twin technology has gained traction in FSW research and development. A digital twin is a virtual representation of the physical FSW process that can be used for real-time monitoring, optimization, and predictive maintenance. Advanced digital twin models integrate data from multiple sensors with physics-based simulations to provide a comprehensive view of the welding process.
Recent developments in digital twin technology for FSW include the integration of machine learning algorithms for real-time parameter optimization and defect prediction. These systems can analyze historical data and current process conditions to suggest optimal welding parameters or predict the likelihood of defect formation. The implementation of digital twin technology in FSW production lines has the potential to significantly improve process efficiency, reduce scrap rates, and enhance overall weld quality.
As FSW technology continues to evolve, the integration of advanced computational tools, innovative tool designs, and automated systems will play a crucial role in expanding its industrial applications. The ongoing research and development efforts in FSW are paving the way for more efficient, versatile, and reliable joining processes, meeting the ever-increasing demands of modern manufacturing industries.
